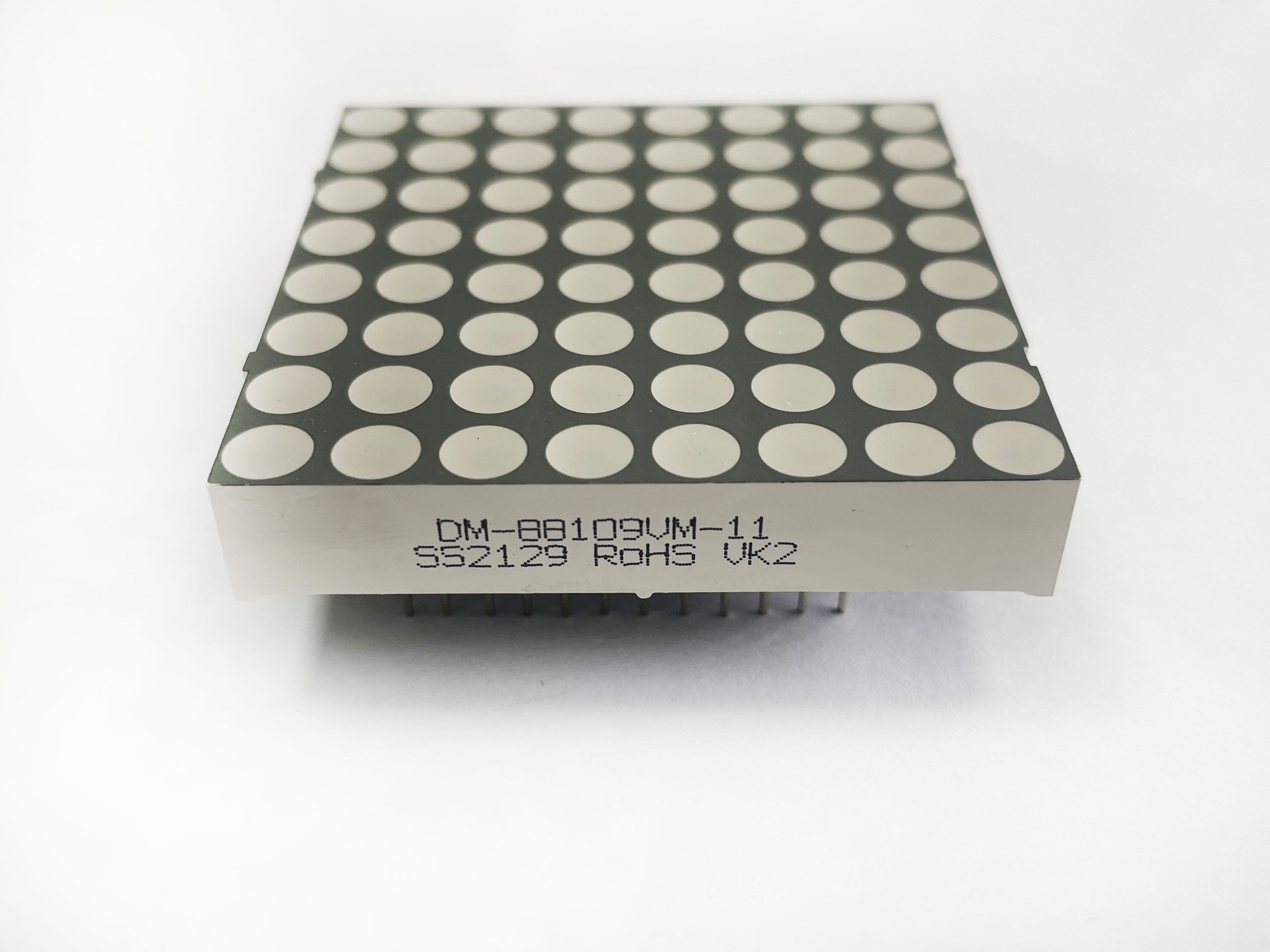

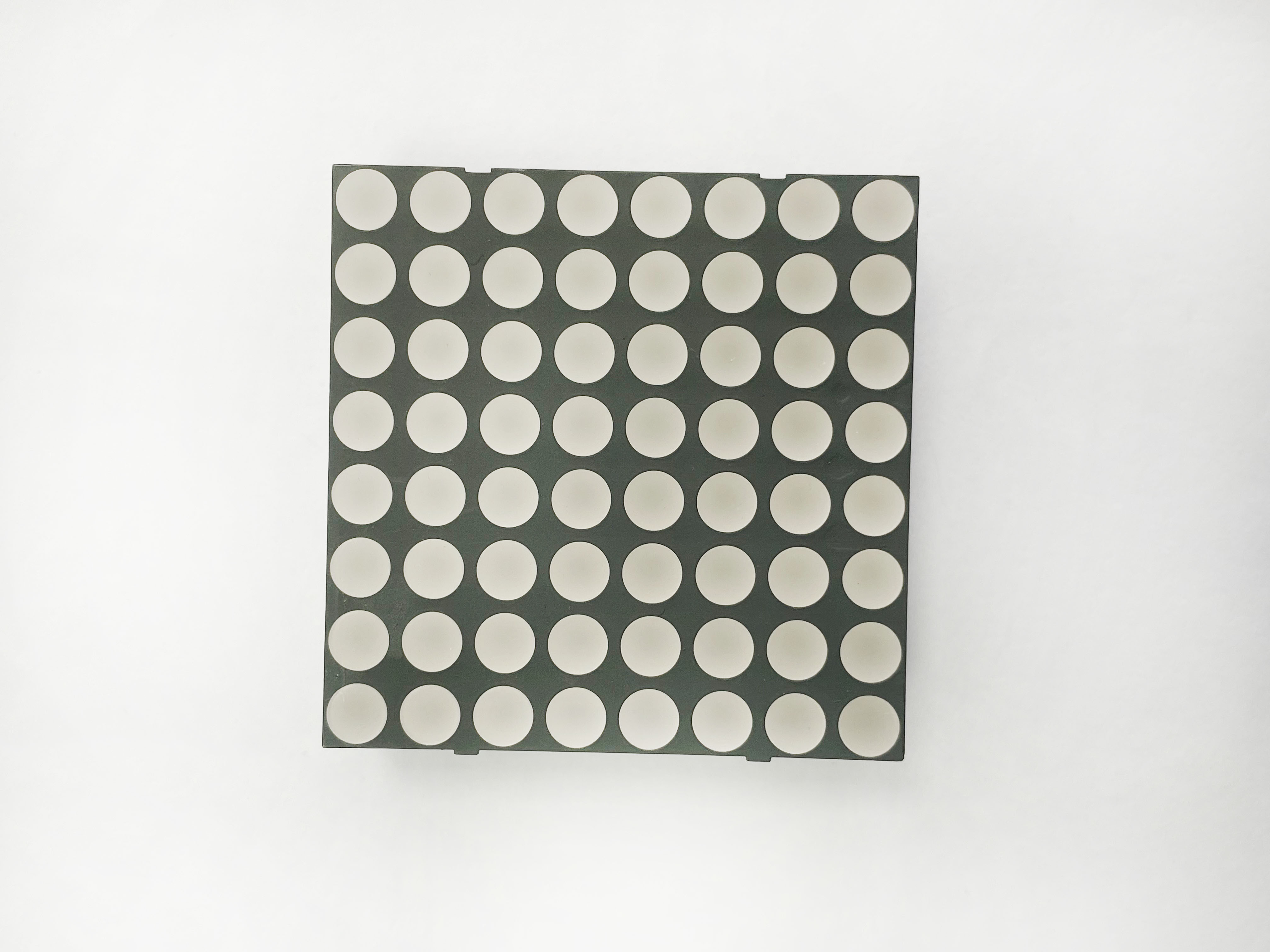

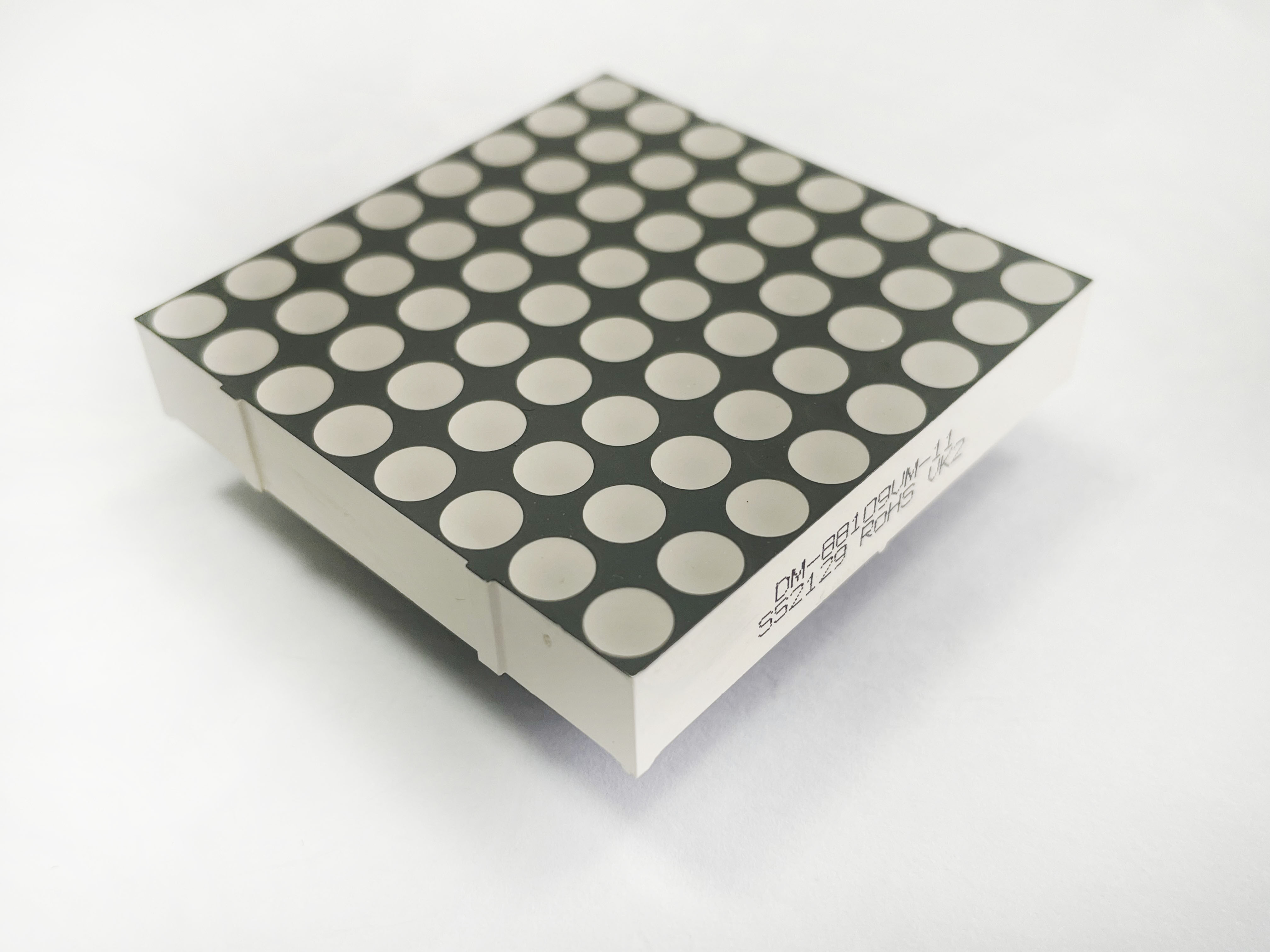

CSDM-88108VM
Basic information
1.1.85 Inch Dot-Matrix Display .
2.8*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Two color.
2.8*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Two color.
Featured Benefits
Product specifications
| Package | Outer Dimensions (mm) | Matrix Height | Dot Diameter, Dot Pitch | Color | Part Number | Dominant Wavelength λd (nm) | Chromaticity Coordinate (x,y) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | ||||||||
| Dot 8*8 | 47.7*47.7*9 | 47.0mm (1.85inch) | Ø5.0mm, 6.0mm | Red | CSDM-88108VM | * | 625 | * | 40 | 70 | 10 |
| Dot 8*8 | 47.7*47.7*9 | 47.0mm (1.85inch) | Ø5.0mm, 6.0mm | Green | CSDM-88108VM | * | 570 | * | 15 | 28 | 10 |
