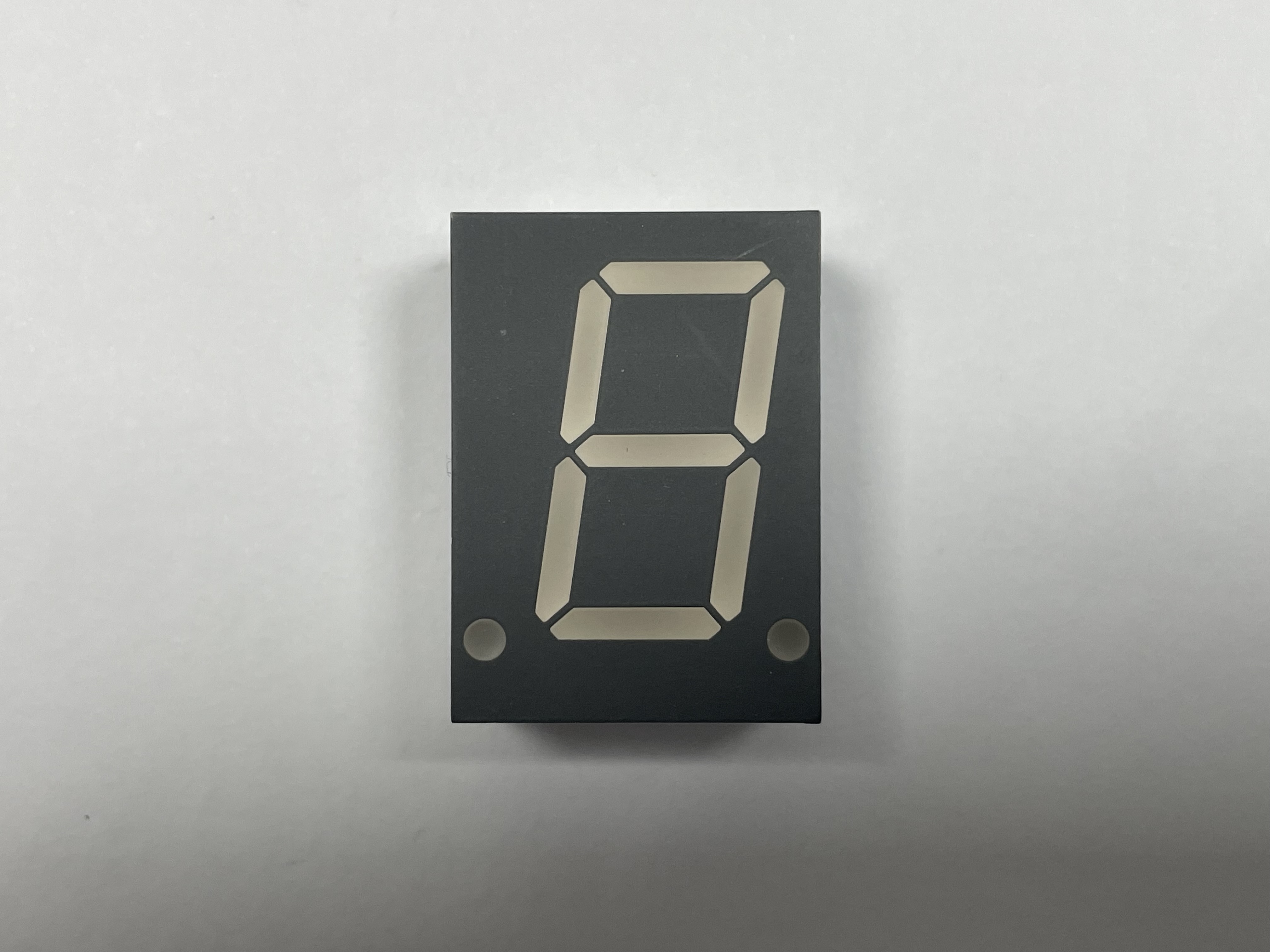

CSDS-80102UM_CSDS-80103UM
Basic information
1.Single digit display .
2.0.8 Inch.
3.Case mold type.
4.Low power consumption.
5.Two-color.
2.0.8 Inch.
3.Case mold type.
4.Low power consumption.
5.Two-color.
Featured Benefits
Product specifications
| Package | Outer Dimensions (mm) | Color | Part Number | Dominant Wavelength λd (nm) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | |||||
| 0.8 inch | 20*27.7*10 | Red | CSDS-80102UM | CSDS-80103UM | 645 | 12 | 19 | 10 |
| 0.8 inch | 20*27.7*10 | Green | CSDS-80102UM | CSDS-80103UM | 570 | 7 | 14 | 10 |
