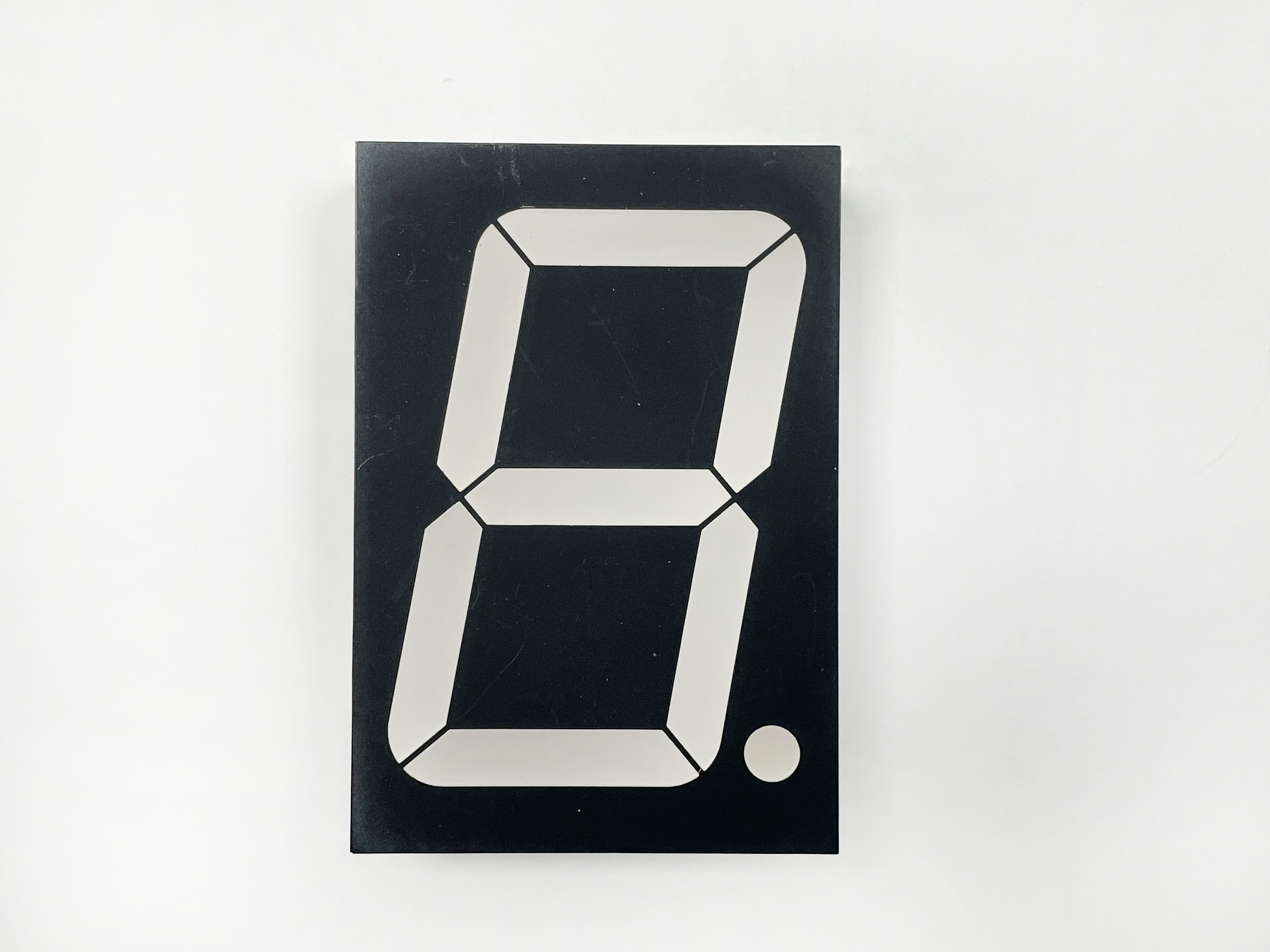

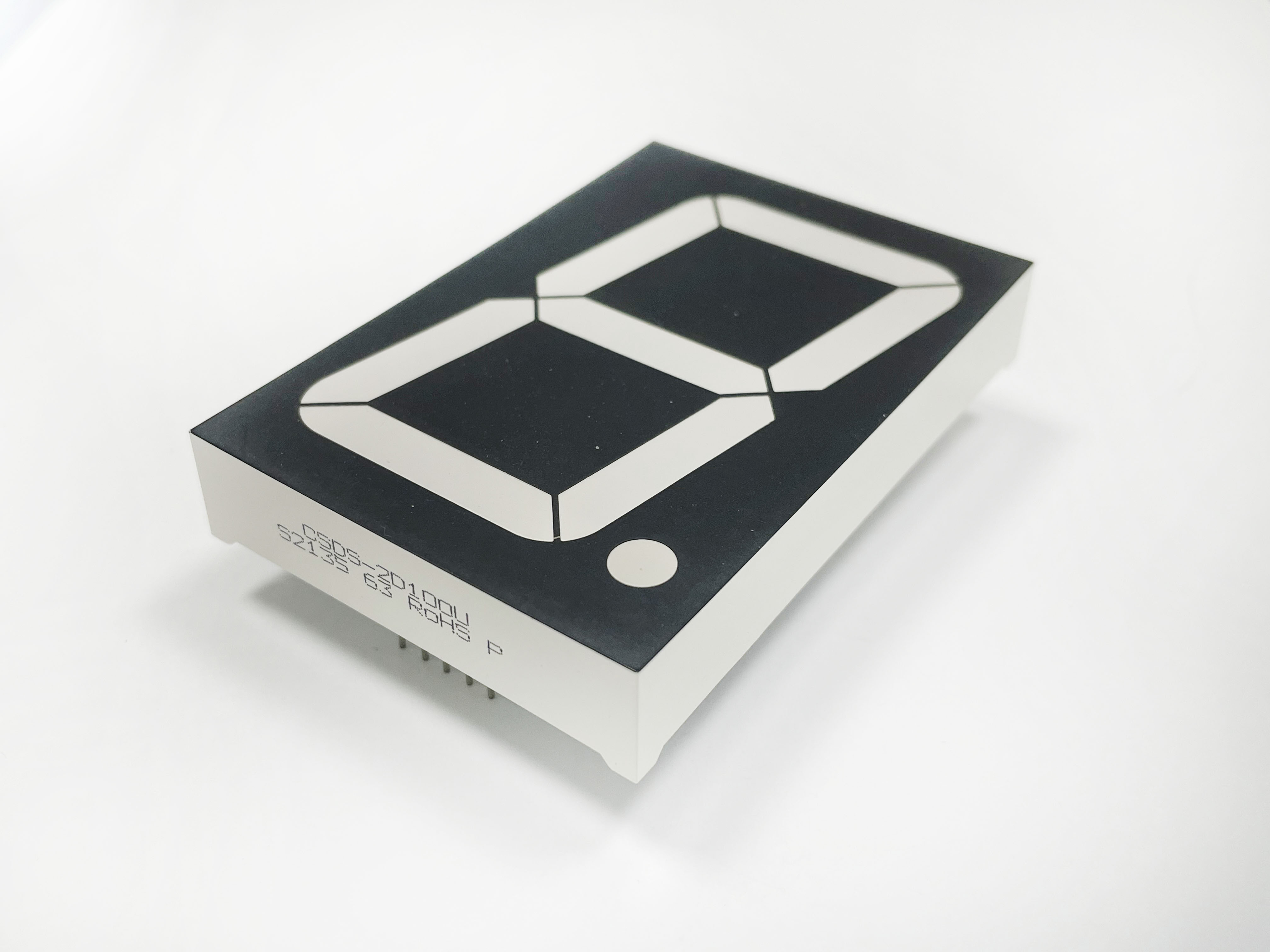

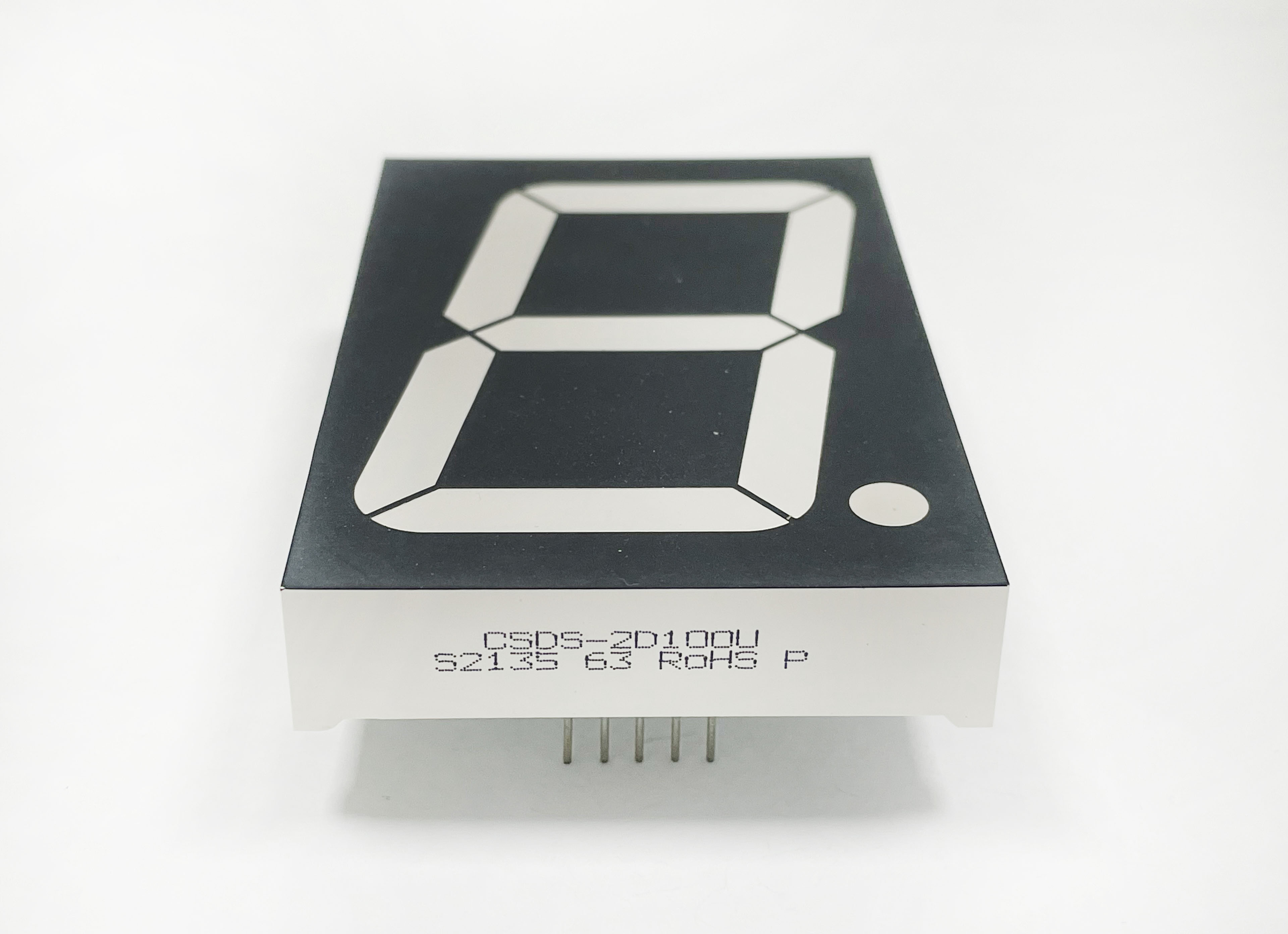

CSDS-2D100_CSDS-2D101
Basic information
1.Single digit  display .
2.2.3 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
Featured Benefits
Contact us
Product specifications
Package Outer Dimensions (mm) Color Part Number Dominant Wavelength λd (nm) Luminous Intensity IV (mcd) Forward Current IF (mA)
Common Anode Common Cathode Min. Typ.
2.30 inch 47.8* 69.7*12 Green CSDS-2D1002 CSDS-2D1012 525 700 1400 10
2.30 inch 47.8* 69.7*12 Green CSDS-2D100M CSDS-2D101M 570 44 100 10
2.30 inch 47.8* 69.7*12 Yellow CSDS-2D100T CSDS-2D101T 590 110 280 10
2.30 inch 47.8* 69.7*12 Orange CSDS-2D100A CSDS-2D101A 605 110 300 10
2.30 inch 47.8* 69.7*12 Red CSDS-2D100V CSDS-2D101V 625 90 230 10
2.30 inch 47.8* 69.7*12 Red CSDS-2D100L CSDS-2D101L 630 90 220 10
2.30 inch 47.8* 69.7*12 Red CSDS-2D100U CSDS-2D101U 645 70 170 10
File Download
