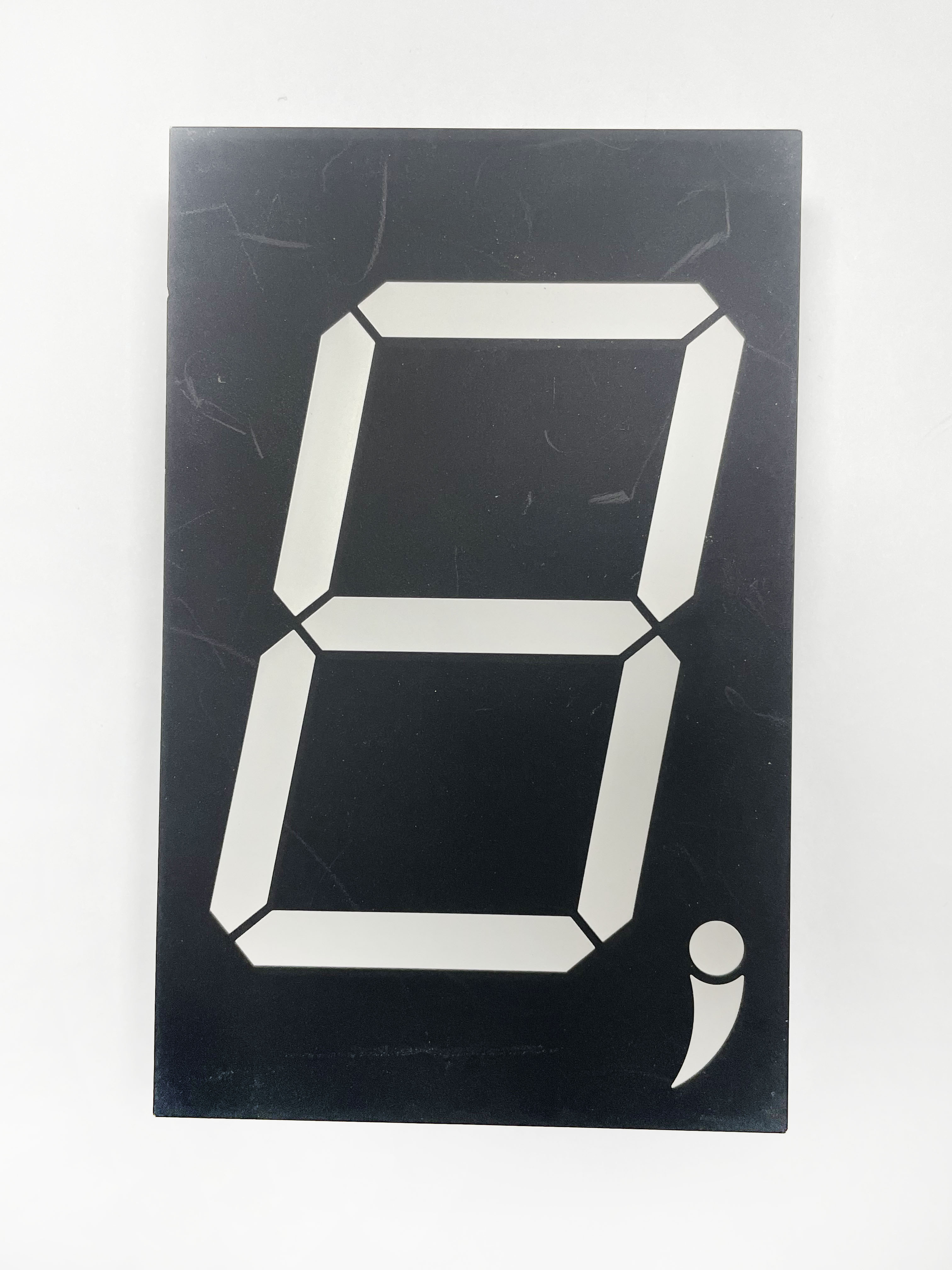

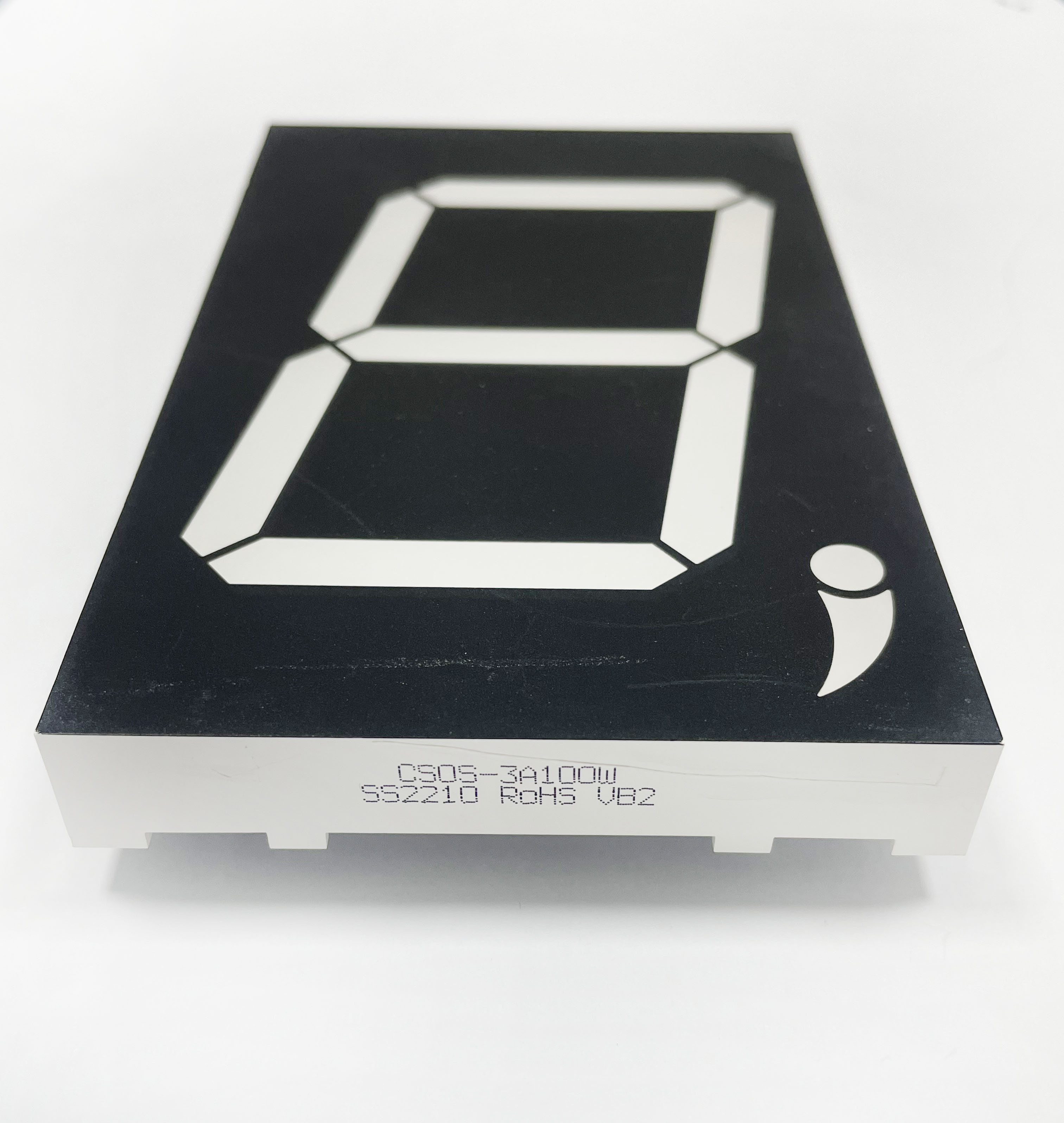

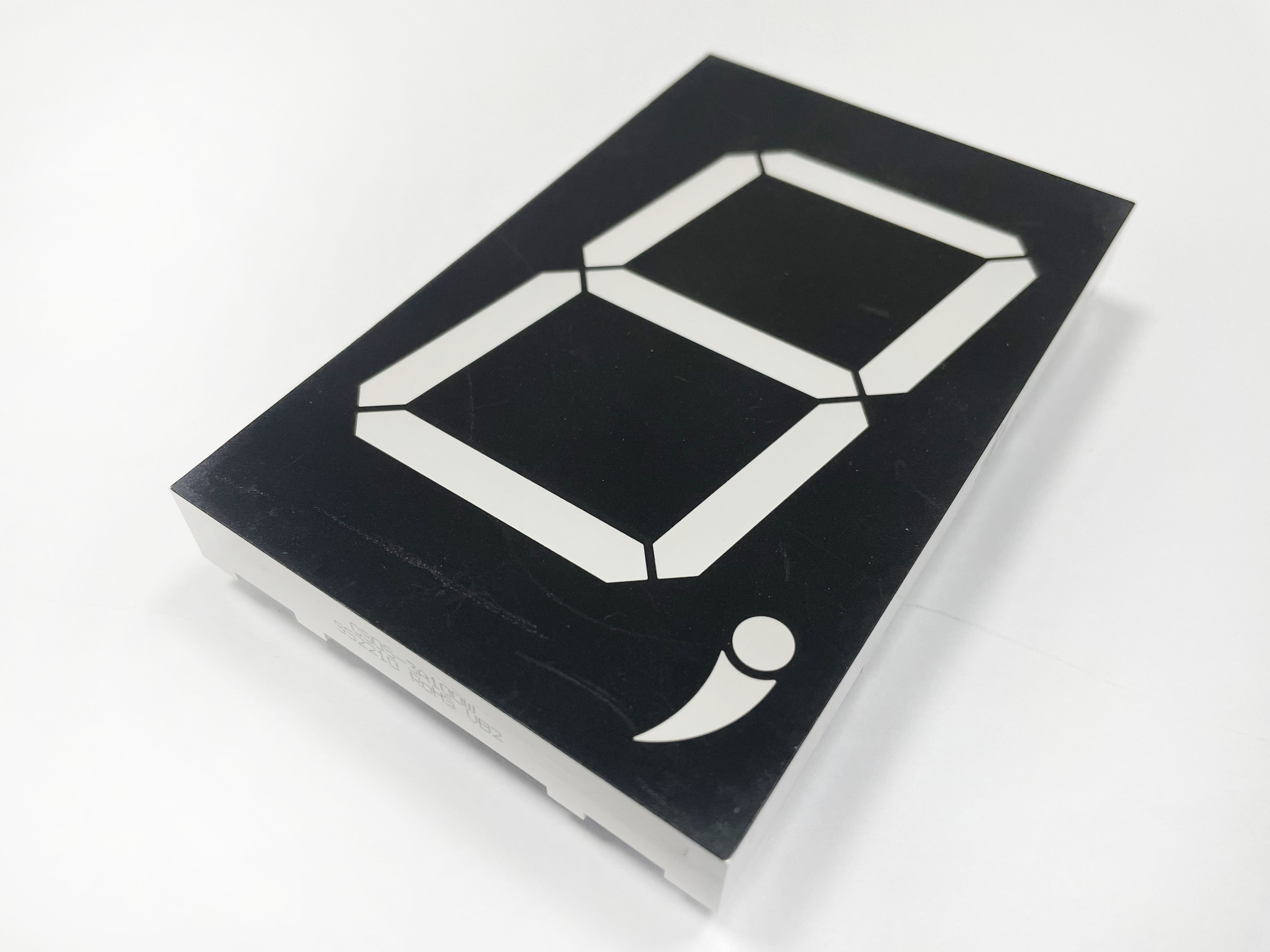

CSDS-3A100_CSDS-3A101
Basic information
1.Single digit display .
2.3.0 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
2.3.0 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
Featured Benefits
Product specifications
| Package | Outer Dimensions (mm) | Color | Part Number | Dominant Wavelength λd (nm) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | |||||
| 3.00 inch | 70*110*13 | Green | CSDS-3A1002 | CSDS-3A1012 | 525 | 1200 | 2400 | 10 |
| 3.00 inch | 70*110*13 | Green | CSDS-3A100M | CSDS-3A101M | 570 | 70 | 150 | 10 |
| 3.00 inch | 70*110*13 | Yellow | CSDS-3A100T | CSDS-3A101T | 590 | 180 | 440 | 10 |
| 3.00 inch | 70*110*13 | Orange | CSDS-3A100A | CSDS-3A101A | 605 | 180 | 460 | 10 |
| 3.00 inch | 70*110*13 | Red | CSDS-3A100V | CSDS-3A101V | 625 | 160 | 350 | 10 |
| 3.00 inch | 70*110*13 | Red | CSDS-3A100L | CSDS-3A101L | 630 | 150 | 350 | 10 |
| 3.00 inch | 70*110*13 | Red | CSDS-3A100U | CSDS-3A101U | 645 | 90 | 200 | 10 |
