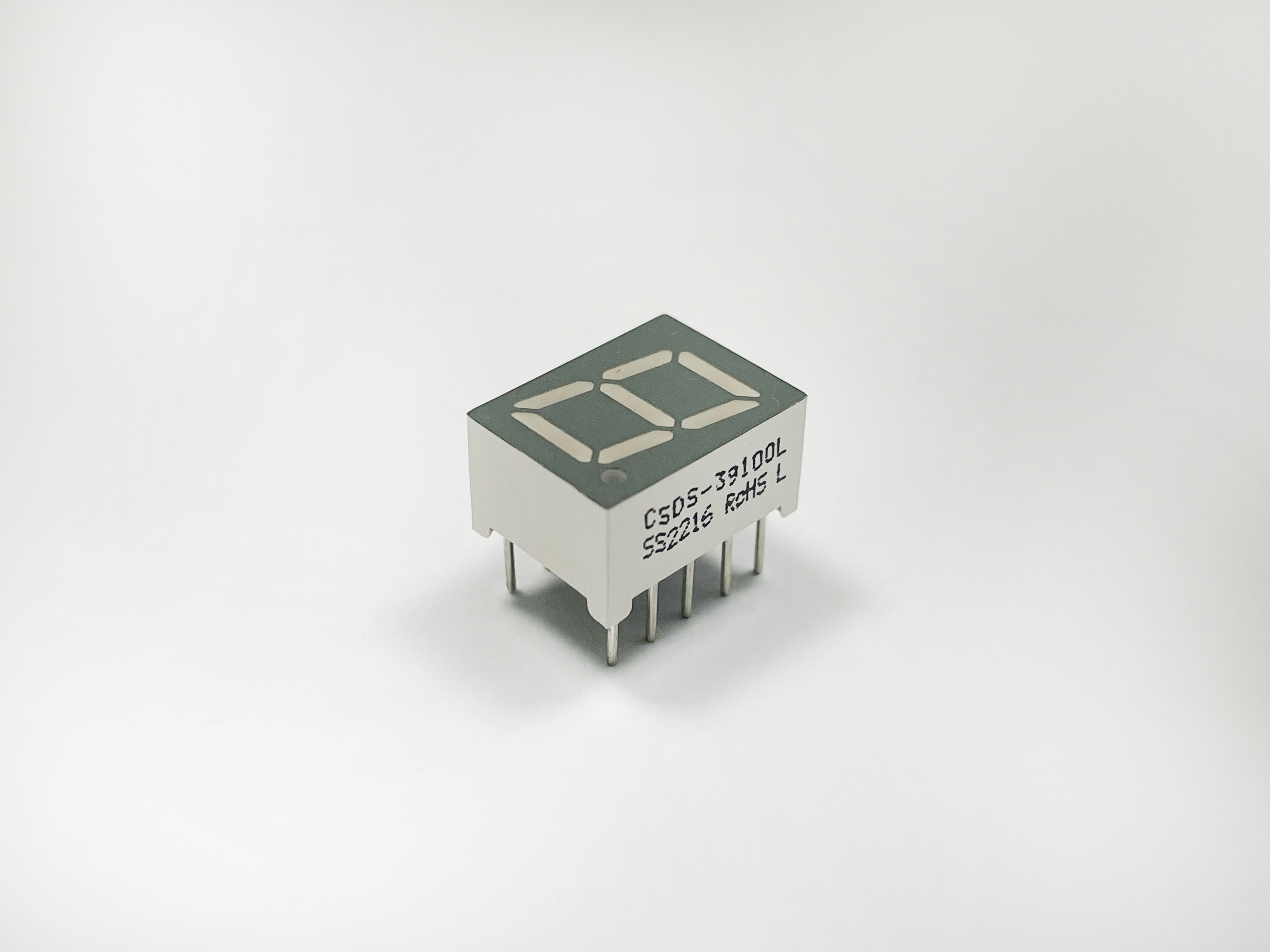

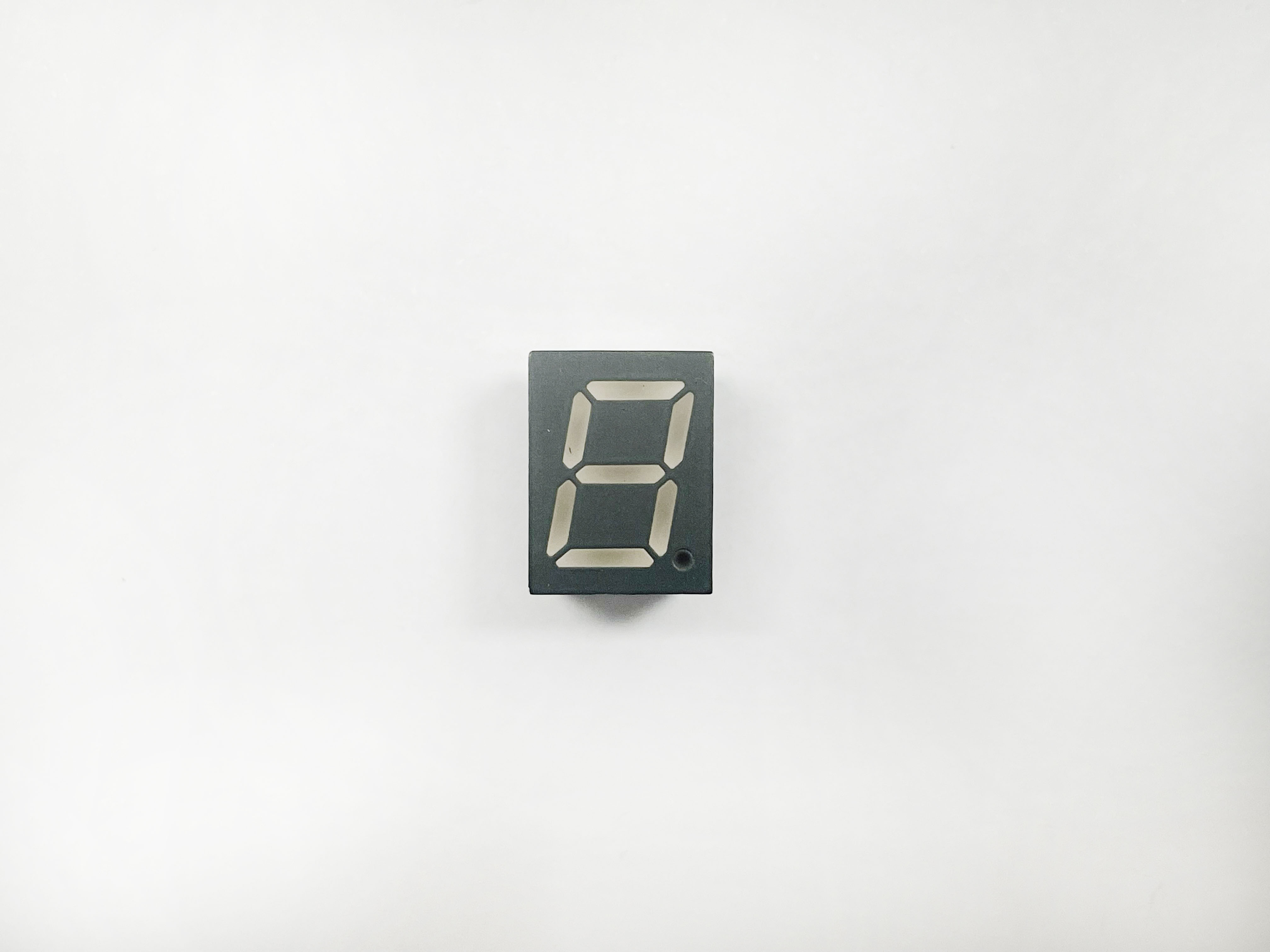

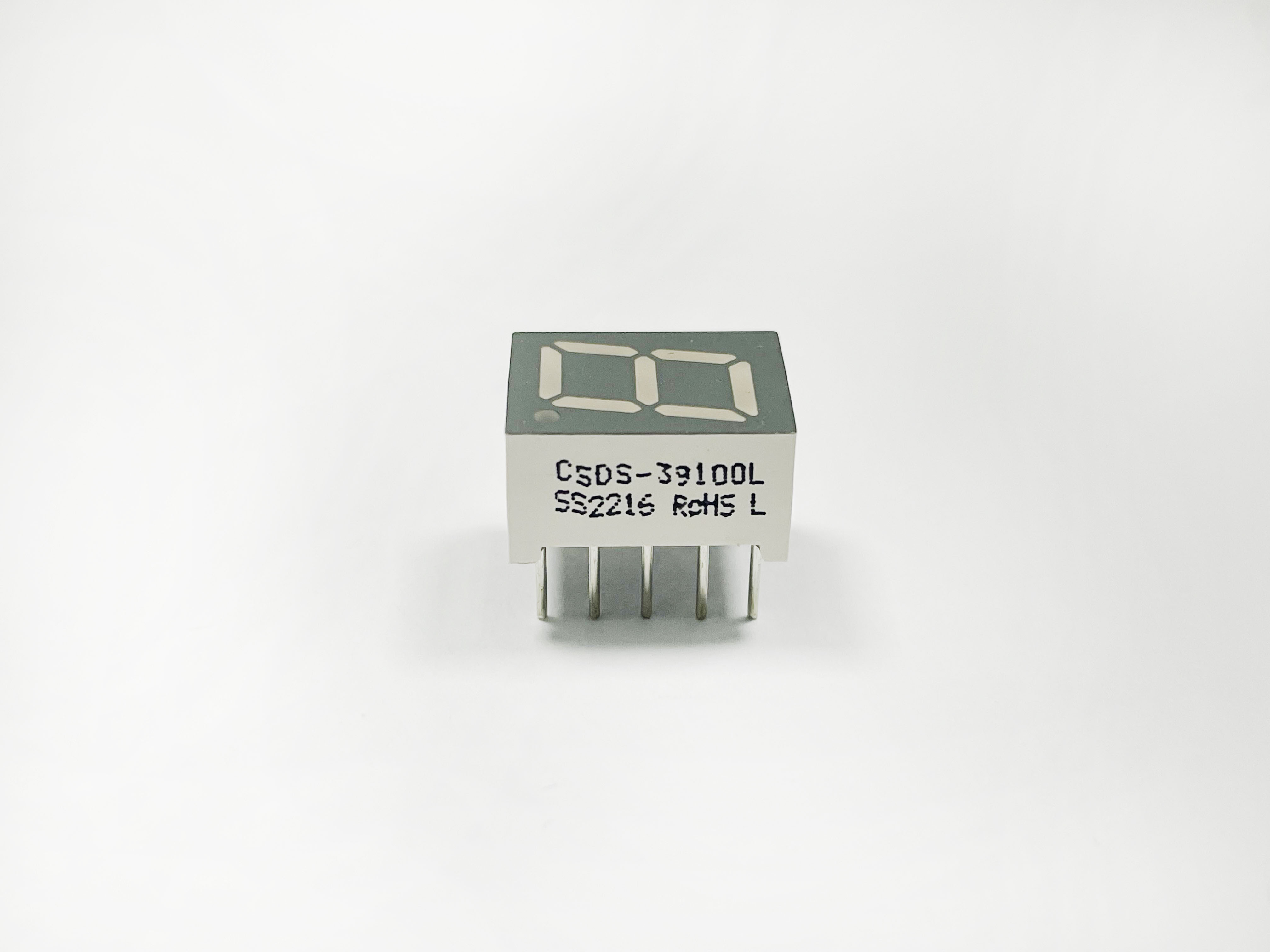

CSDS-39100_CSDS-39101
Basic information
1.Single digit display .
2.0.39 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
2.0.39 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
Featured Benefits
Product specifications
Package | Outer Dimensions (mm) | Color | Part Number | Dominant Wavelength λd (nm) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
---|---|---|---|---|---|---|---|---|
Common Anode | Common Cathode | Min. | Typ. | |||||
0.39 inch | 10*13*7 | Green | CSDS-391002 | CSDS-391012 | 525 | 70 | 150 | 10 |
0.39 inch | 10*13*7 | Green | CSDS-39100M | CSDS-39101M | 570 | 4 | 10 | 10 |
0.39 inch | 10*13*7 | Yellow | CSDS-39100T | CSDS-39101T | 590 | 17 | 38 | 10 |
0.39 inch | 10*13*7 | Orange | CSDS-39100A | CSDS-39101A | 605 | 17 | 45 | 10 |
0.39 inch | 10*13*7 | Red | CSDS-39100V | CSDS-39101V | 625 | 10 | 23 | 10 |
0.39 inch | 10*13*7 | Red | CSDS-39100L | CSDS-39101L | 630 | 10 | 22 | 10 |
0.39 inch | 10*13*7 | Red | CSDS-39100U | CSDS-39101U | 645 | 7 | 14 | 10 |
