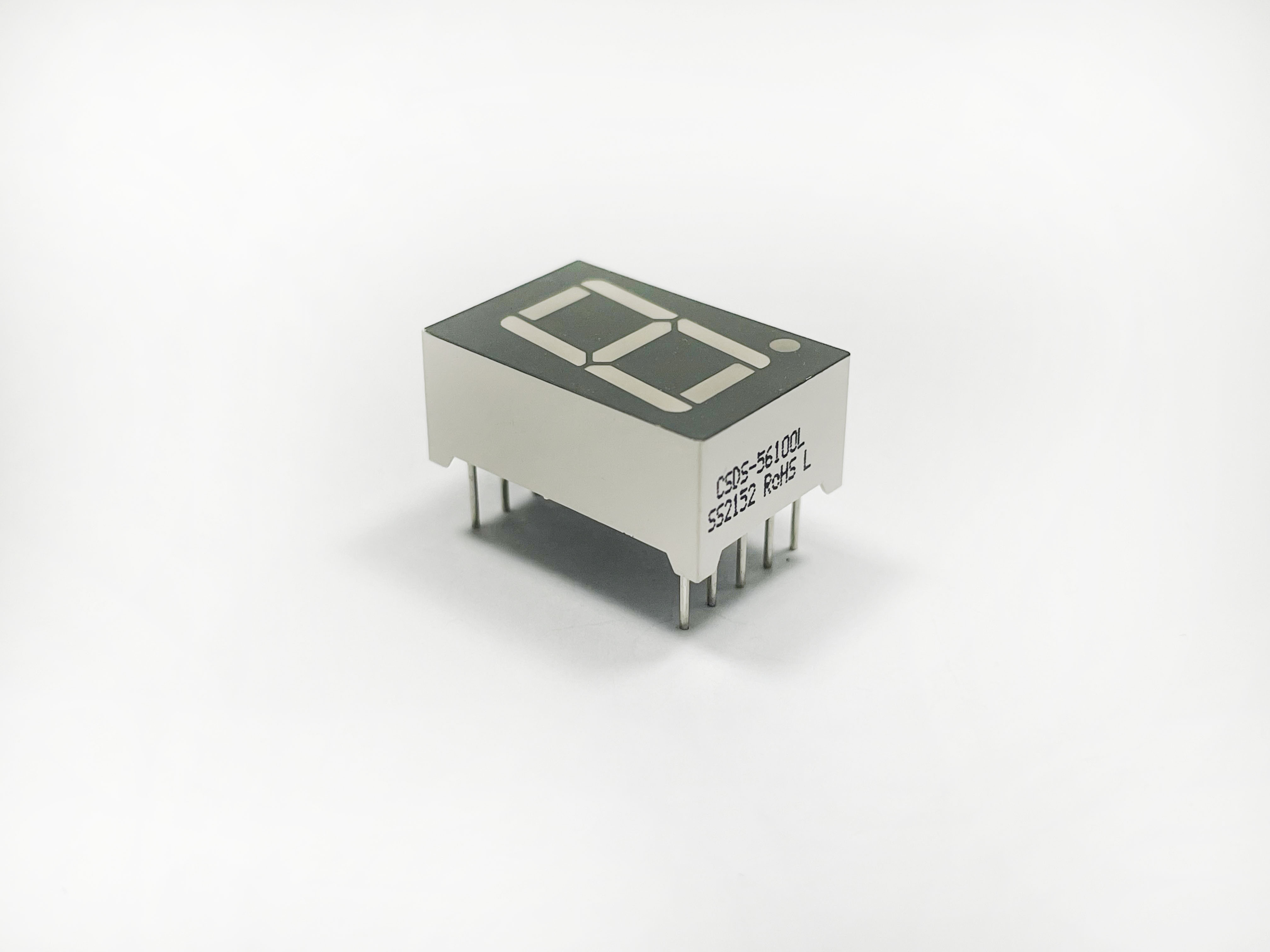

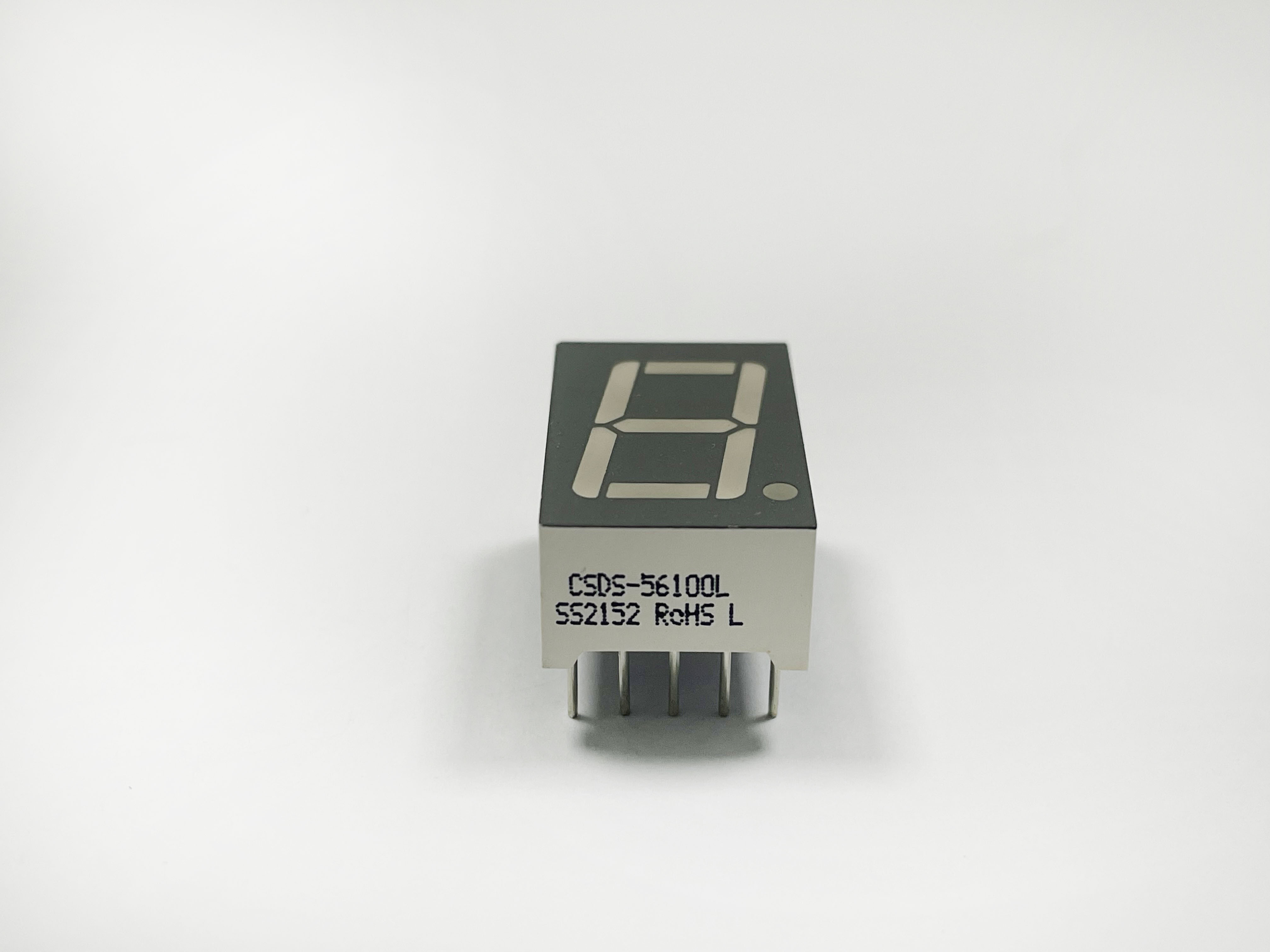

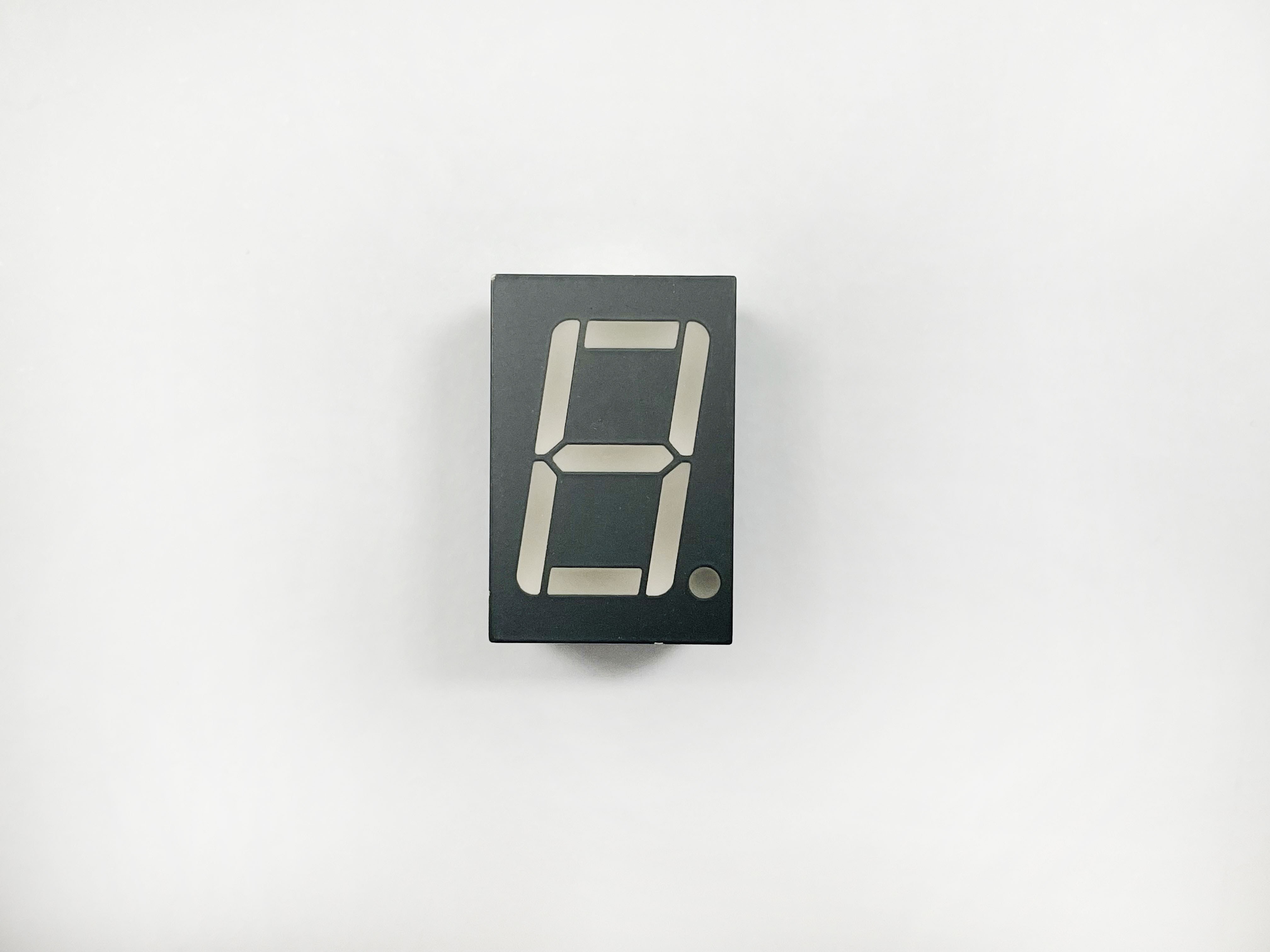

CSDS-56100_CSDS-56101
Basic information
1.Single digit  display .
2.0.56 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
Featured Benefits
Contact us
Product specifications
Package Outer Dimensions (mm) Color Part Number Dominant Wavelength λd (nm) Luminous Intensity IV (mcd) Forward Current IF (mA)
Common Anode Common Cathode Min. Typ.
0.56 inch 12.6*19*8 Green CSDS-561002 CSDS-561012 525 110 200 10
0.56 inch 12.6*19*8 Green CSDS-56100M CSDS-56101M 570 7 12 10
0.56 inch 12.6*19*8 Yellow CSDS-56100T CSDS-56101T 590 27 50 10
0.56 inch 12.6*19*8 Orange CSDS-56100A CSDS-56101A 605 27 60 10
0.56 inch 12.6*19*8 Red CSDS-56100V CSDS-56101V 625 17 30 10
0.56 inch 12.6*19*8 Red CSDS-56100L CSDS-56101L 630 17 30 10
0.56 inch 12.6*19*8 Red CSDS-56100U CSDS-56101U 645 10 18 10
