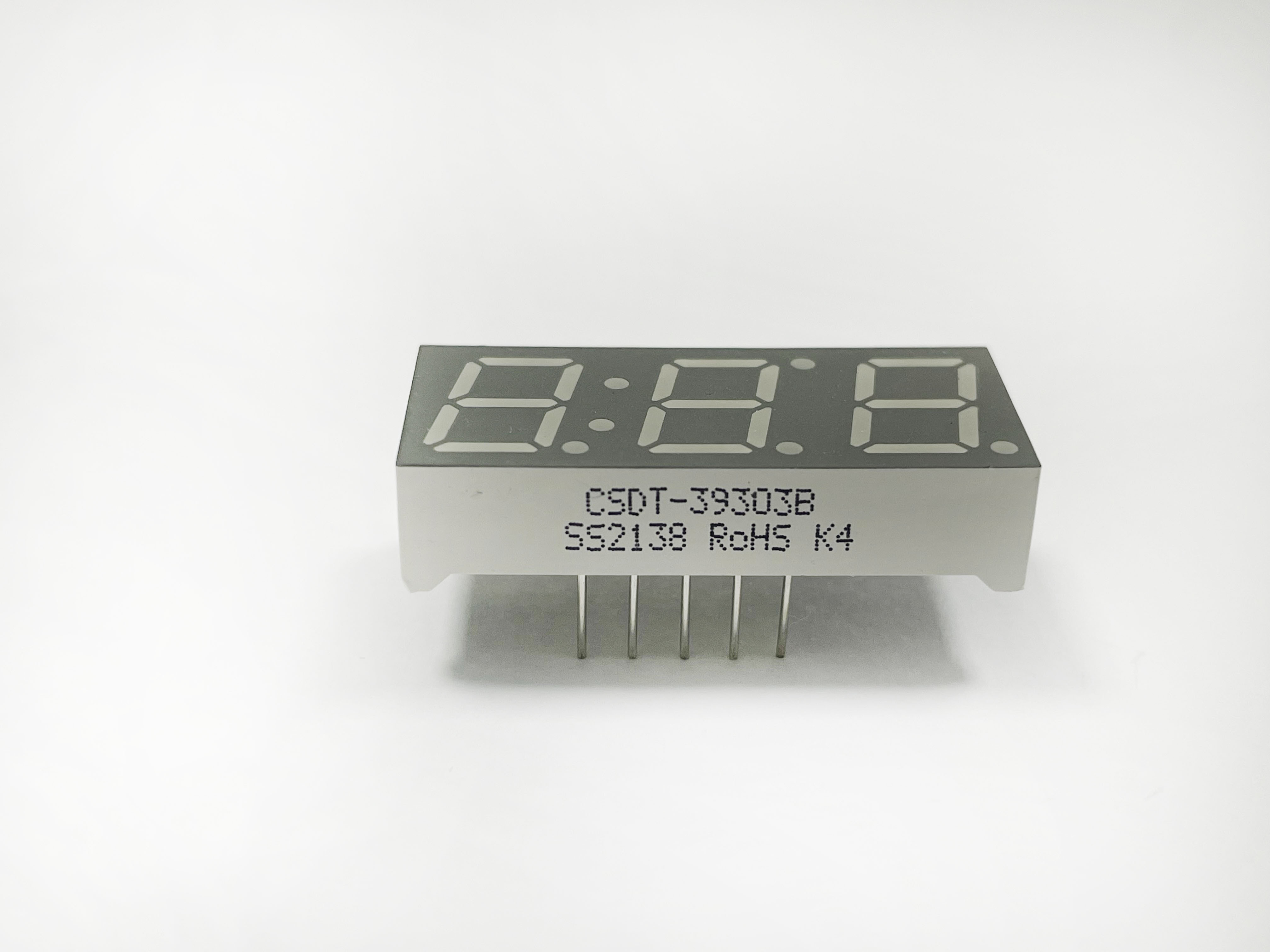

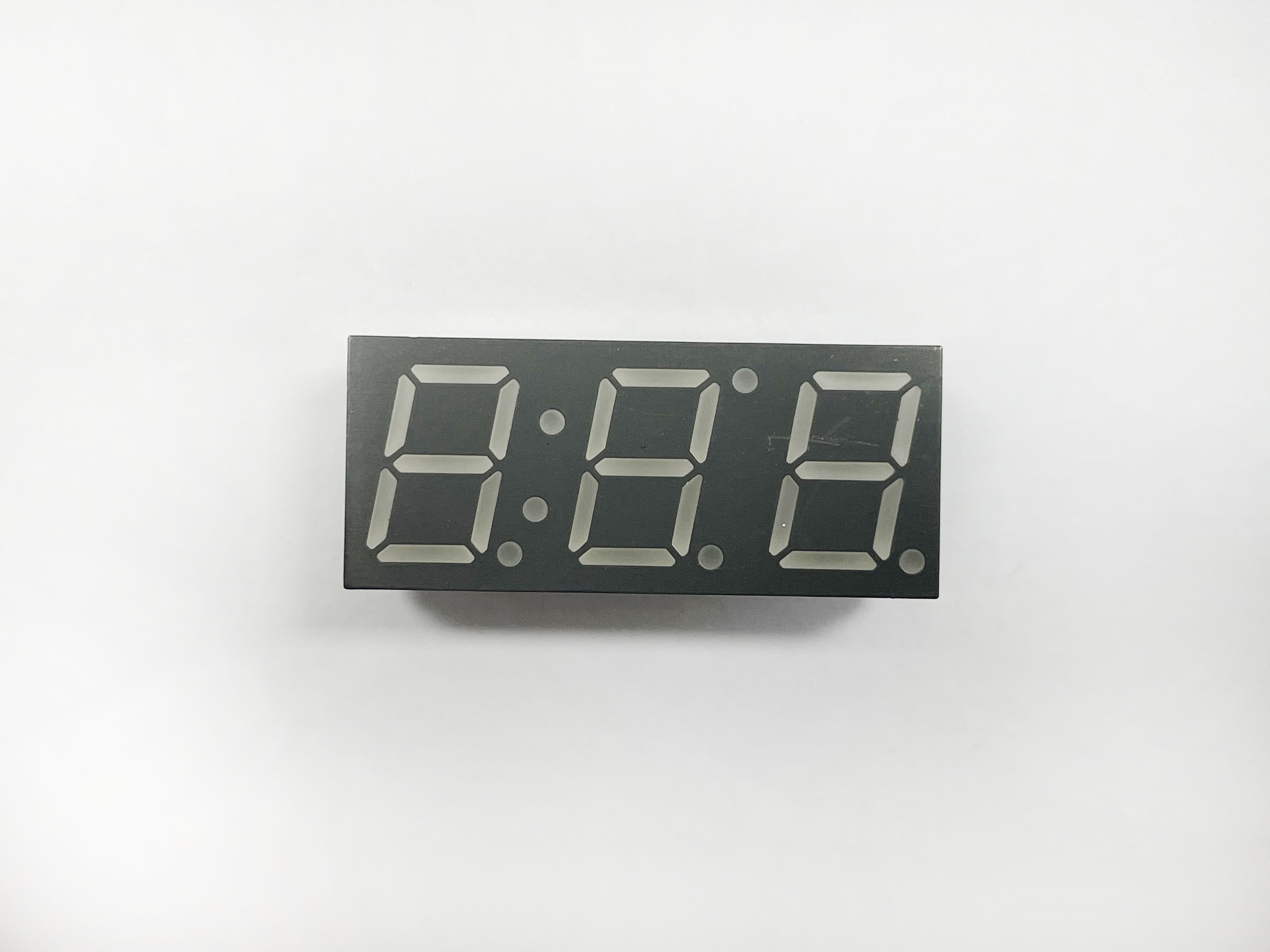

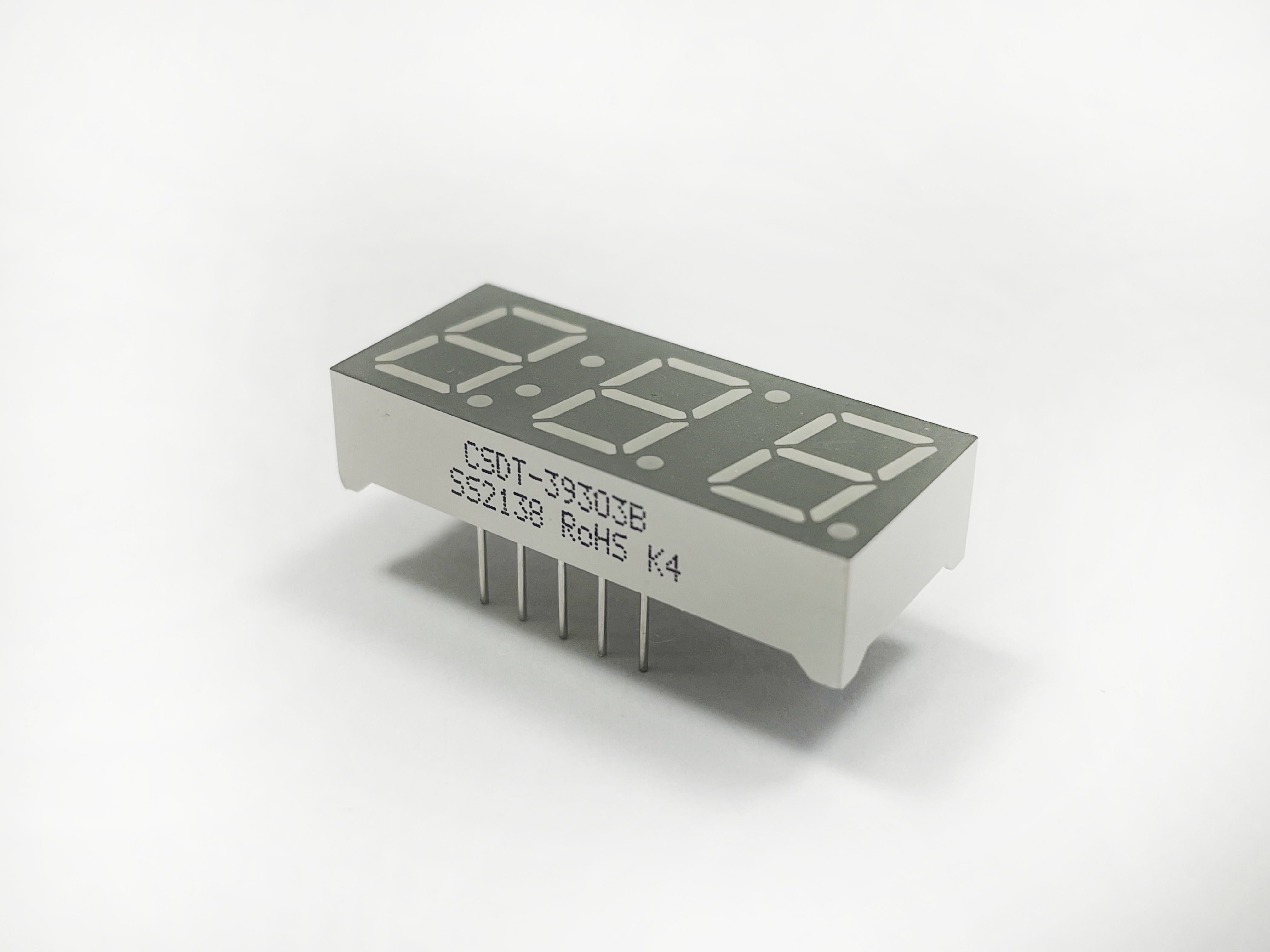

CSDT-39300_CSDT-39301
Basic information
1.Triple digit  display .
2.0.39 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
Featured Benefits
Contact us
Product specifications
Package Outer Dimensions (mm) Color Part Number Dominant Wavelength λd (nm) Luminous Intensity IV (mcd) Forward Current IF (mA)
Common Anode Common Cathode Min. Typ.
0.39 inch 30*12.8*7 Green CSDT-393002 CSDT-393012 525 70 150 10
0.39 inch 30*12.8*7 Green CSDT-39300M CSDT-39301M 570 4 10 10
0.39 inch 30*12.8*7 Yellow CSDT-39300T CSDT-39301T 590 17 38 10
0.39 inch 30*12.8*7 Orange CSDT-39300A CSDT-39301A 605 17 45 10
0.39 inch 30*12.8*7 Red CSDT-39300V CSDT-39301V 625 10 23 10
0.39 inch 30*12.8*7 Red CSDT-39300L CSDT-39301L 630 10 22 10
0.39 inch 30*12.8*7 Red CSDT-39300U CSDT-39301U 645 7 14 10
