CSDS-S39126X_CSDS-S39127X
Basic information

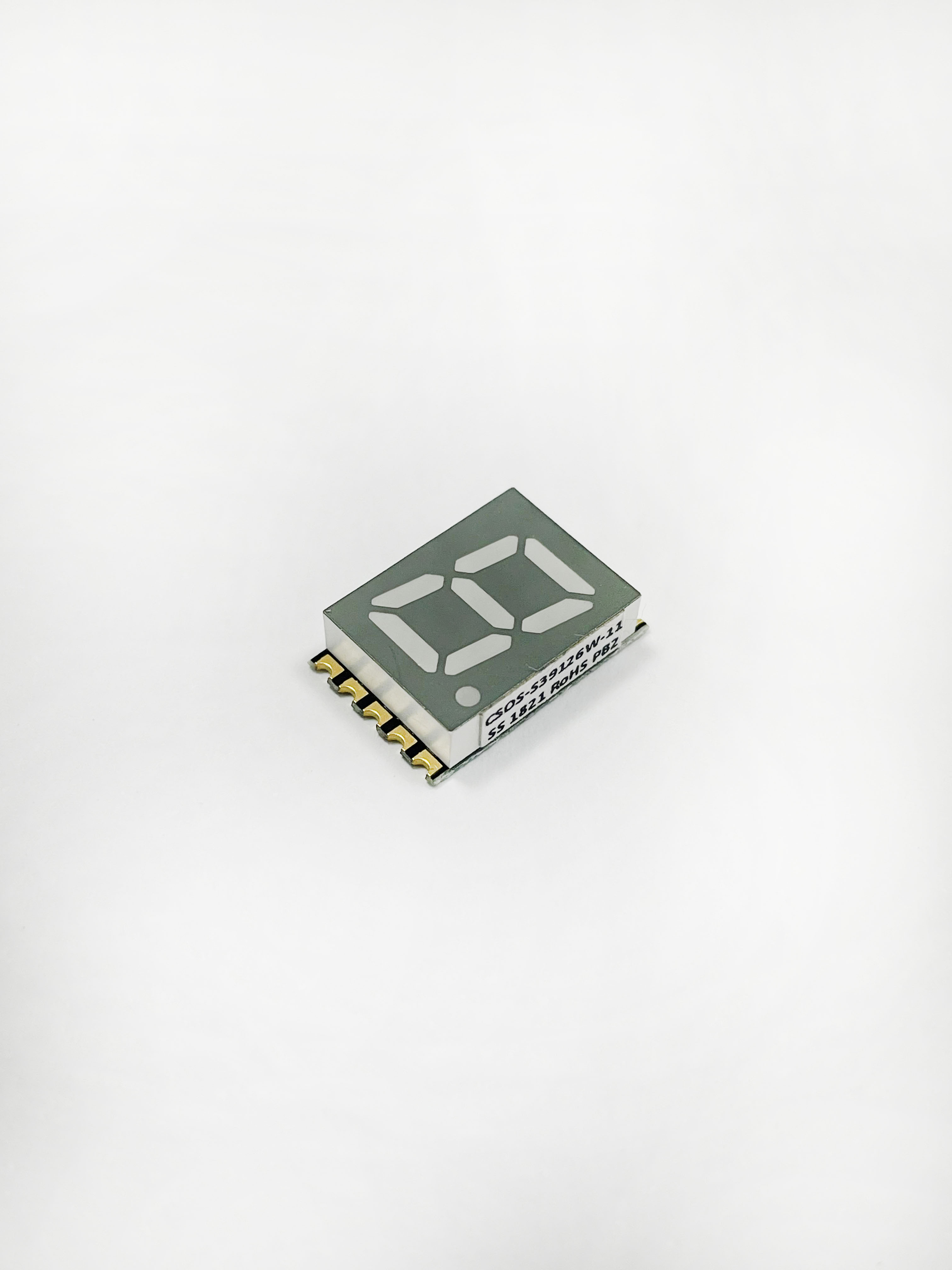

1.Single Digit  SMD Display .
2.0.39 Inch.
3.Qualified according to JEDEC moisture sensitivity Level 2a.
4.Low power consumption.
5.Various color.
Featured Benefits
Contact us
Product specifications
Package Outer Dimensions (mm) Color Part Number Dominant Wavelength λd (nm) Luminous Intensity IV (mcd) Forward Current IF (mA)
Common Anode Common Cathode Min. Typ.
0.39 inch Single Digit 9.8*15*3.75 Green CSDS-S391262 CSDS-S391272 35 60 10
0.39 inch Single Digit 9.8*15*3.75 Green CSDS-S39126M CSDS-S39127M 2 5 10
0.39 inch Single Digit 9.8*15*3.75 Yellow CSDS-S39126T CSDS-S39127T 6 12 10
0.39 inch Single Digit 9.8*15*3.75 Orange CSDS-S39126A CSDS-S39127A 6 12 10
0.39 inch Single Digit 9.8*15*3.75 Red CSDS-S39126V CSDS-S39127V 4 8 10
0.39 inch Single Digit 9.8*15*3.75 Red CSDS-S39126L CSDS-S39127L 4 8 10
0.39 inch Single Digit 9.8*15*3.75 Red CSDS-S39126U CSDS-S39127U 3 7 10
