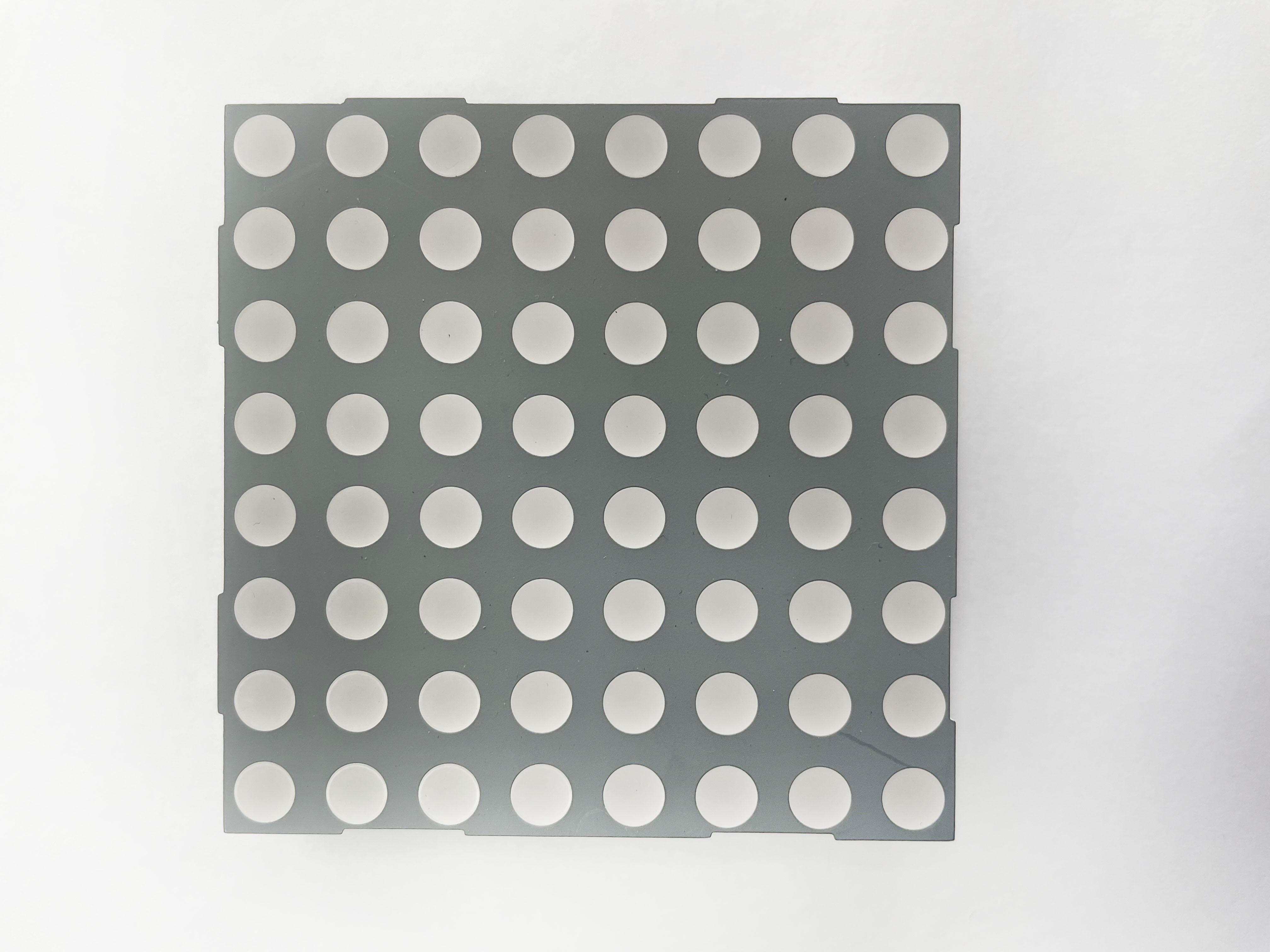

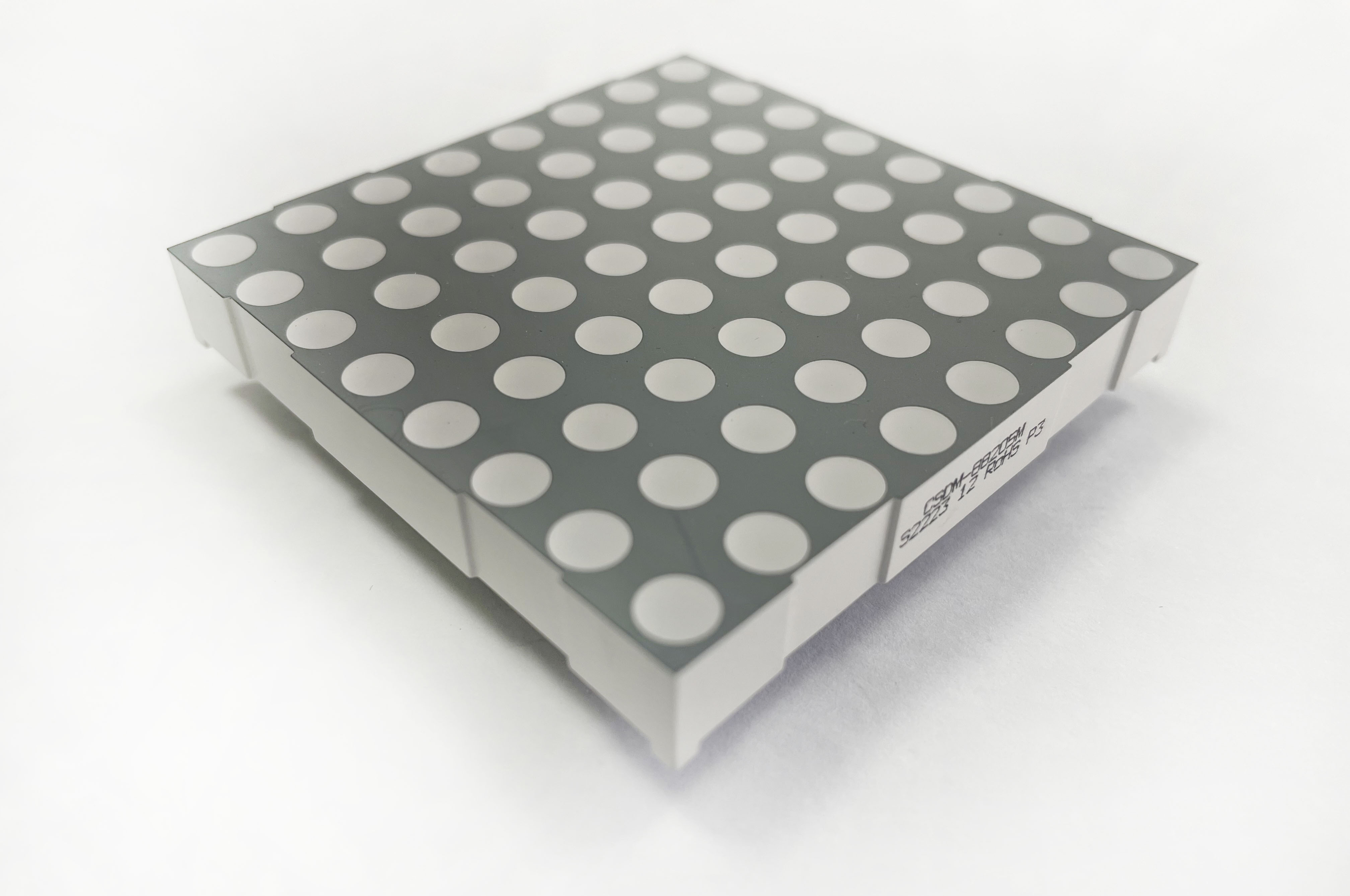

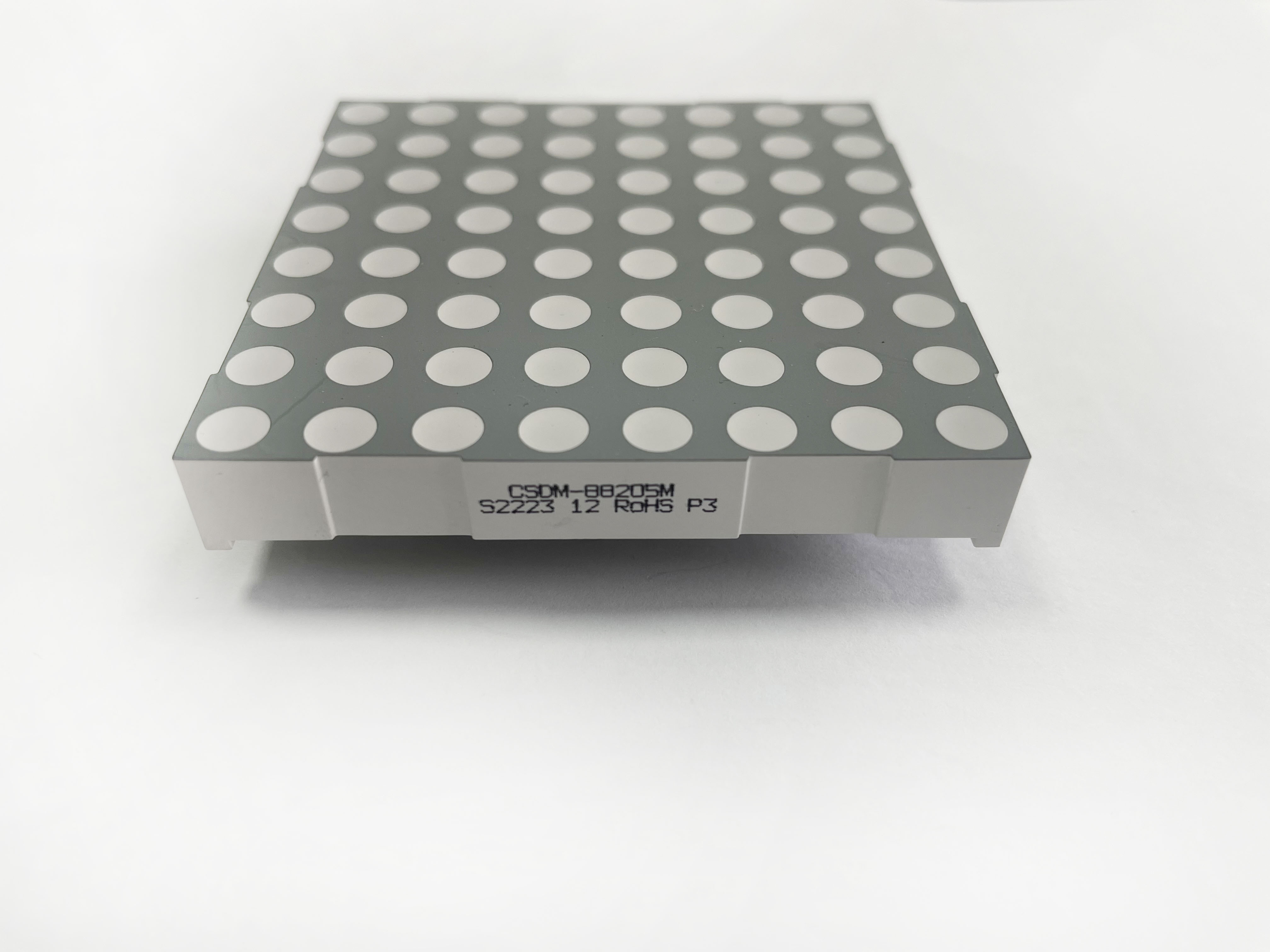

CSDM-88204X_CSDM-88205X
Basic information
1.2.3 Inch Dot-Matrix Display .
2.8*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Various color.
2.8*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Various color.
Featured Benefits
Product specifications
| Package | Outer Dimensions (mm) | Matrix Height | Dot Diameter, Dot Pitch | Color | Part Number | Dominant Wavelength λd (nm) | Chromaticity Coordinate (x,y) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | ||||||||
| Dot 8*8 | 60.1*60.1*9.2 | 58.3mm (2.3 inch) | Ø5.0mm, 7.62mm | Green | CSDM-882042 | CSDM-882052 | 525 | * | 220 | 450 | 10 |
| Dot 8*8 | 60.1*60.1*9.2 | 58.3mm (2.3 inch) | Ø5.0mm, 7.62mm | Green | CSDM-88204M | CSDM-88205M | 570 | * | 15 | 28 | 10 |
| Dot 8*8 | 60.1*60.1*9.2 | 58.3mm (2.3 inch) | Ø5.0mm, 7.62mm | Yellow | CSDM-88204T | CSDM-88205T | 590 | * | 42 | 80 | 10 |
| Dot 8*8 | 60.1*60.1*9.2 | 58.3mm (2.3 inch) | Ø5.0mm, 7.62mm | Orange | CSDM-88204A | CSDM-88205A | 605 | * | 50 | 90 | 10 |
| Dot 8*8 | 60.1*60.1*9.2 | 58.3mm (2.3 inch) | Ø5.0mm, 7.62mm | Red | CSDM-88204V | CSDM-88205V | 625 | * | 40 | 70 | 10 |
| Dot 8*8 | 60.1*60.1*9.2 | 58.3mm (2.3 inch) | Ø5.0mm, 7.62mm | Red | CSDM-88204L | CSDM-88205L | 630 | * | 40 | 70 | 10 |
| Dot 8*8 | 60.1*60.1*9.2 | 58.3mm (2.3 inch) | Ø5.0mm, 7.62mm | Red | CSDM-88204U | CSDM-88205U | 645 | * | 25 | 45 | 10 |
